Ausführungen

Artikelbezeichnung Details Bestellnummer

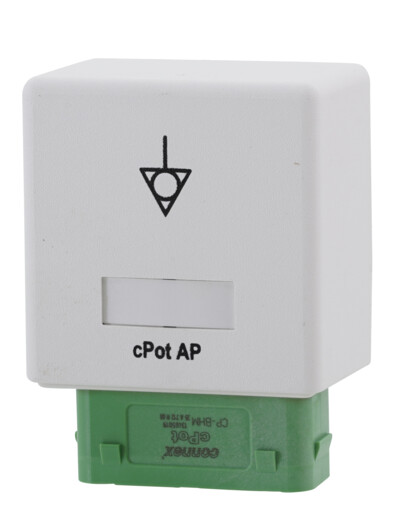

CP-APMB-WH Anschlusspunkt Aufbau weiß 1x cPot[m] 35/25 mm² 1027383
CP-APMB-BK Anschlusspunkt Aufbau schwarz 1x cPot[m] 35/25 mm² 1027384



Technical Information

Produkte
Description CP-APMB-WH / -BK
Elektrisch
Contactor resistance Contactor resistance
Mechanische Daten
Lifetime > 500 Mating cycles per connector
Locking device Latch lock
Conductor cross section 16 mm2 , 25 mm²
Connection wire size 2 x 4mm² - 35mm²
1 x 1,5mm² - 25mm²
Material
Contact 1 contact, copper alloy
Shell Polycarbonat (PC)
Umwelt
Standards compatibility UL94-V0 (connector)
Protection class IEC 60529 IP65
Temperature range -40 °C – 55°C
