NAO4*W-A
Wetterfester opticalCON QUAD Kuppler (Adapter) für Kabelverlängerungen.

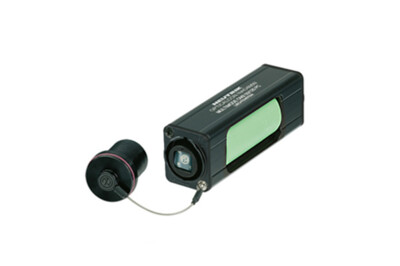

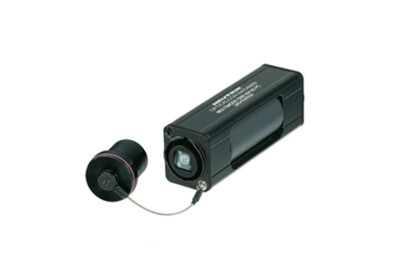

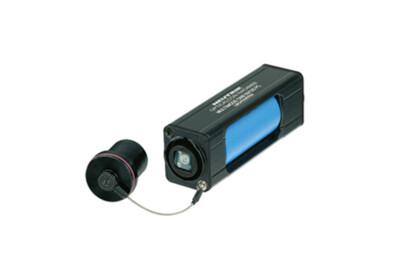

| Product | NAO4MW-A | NAO4SW-A | NAO4SAW-A |
| Fiber Mode | multi-mode PC | single-mode PC | single-mode APC |
| Color Coding | Black | Blue | Green |
Gekreuzte Verdrahtung auf Anfrage.
Auswahl Themen
Downloads
Technische Informationen
Technische Informationen
| Produkte | |
| Title | NAO4*W-A |
| Connection Type | Adapter |
| Gender | female |
| Mechanische Daten | |
| Insertion force | < 45 N |
| Withdrawal force | < 45 N |
| Lifetime (typ.) | 1000 mating cycles |
| Locking device | Push-Pull |
| Material | |
| Insert | Polyamide (PA 6, PBT 30 % GR, PBT 50 % GR) |
| Shell | AlMgSi 0.5, black plated |
| Split sleeve | ceramics |
| Umwelt | |
| Temperature range | -30 °C to +80 °C |
| Protection class | IP65 |
| Optical | |
| Insertion loss | < 0.4 dB / connection |
| Optical connector | LC |
