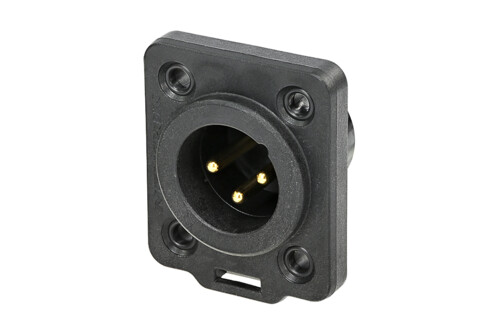

3-poliger Einbaustecker, TRUE OUTDOOR PROTECTED.
Die X-TOP-Serie enthält XLR-Einbausteckverbinder für Außenanwendungen mit hoher Beanspruchung. IP65 und TOP-Geprüft (in Anlehnung an UL50E) in Kombination mit zugehörigem Gegenstecker der TOP-Serie
| Produkte | |
| Title | NC3MDX-TOP |
| Connection Type | XLR |
| Gender | male |
| Elektrisch | |
| Capacitance between contacts | ≤ 4 pF |
| Contact resistance | ≤ 5 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage | < 50 V |
| Mechanische Daten | |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 5000 mating cycles |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Mounting direction | Front mounting |
| Chassis shape | D |
| Material | |
| Contact plating | 0.2 µm Au over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | Polyamide (PA 6.6 30 % GR) |
| Locking element | Stainless steel |
| Gasket | TPE |
| Shell | Polyamide (PA 6.6 30 % GR) |
| Umwelt | |
| Flammability | UL94 V-0 |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP65 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
