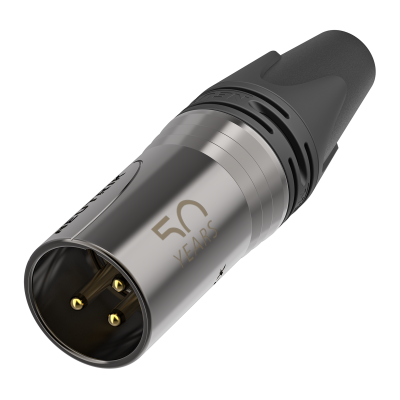

3 pole male cable connector, 50th Anniversary Special Edition
To mark this milestone, we proudly present our 50th Anniversary Special Edition
Crafted with a unique dark grey conductive metal plating and the 50 years anniversary logo laser engraved, these connectors combine exceptional durability and elegance, while gold-plated contacts ensure superior performance and reliability.
| Product | |
| Title | NC3MXX-50 |
| Product family | xlrCON |
| Connection type | cable connector |
| Gender | male |
| Electrical | |
| Capacity between contacts | ≤ 4 pF |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 10 GΩ (initial) |
| Rated current per contact | 16 A |
| Rated voltage | 50 Vac |
| Mechanical | |
| Cable O.D. | 3.5 - 8.0 mm |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | min. 1000 mating cycles |
| Wiresize | max. 2.5mm2 |
| Wiresize | max. 14 AWG |
| Wiring | Solder contacts |
| Locking device | Latch lock |
| Material | |
| Boot | Polyurethan |
| Contact | Brass (CuZn39Pb3) |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Insert | Polyamide (PA66) |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | 50 years Special Edition plating CuNi |
| Strain relief | Polyacetal (POM) |
| Environmental | |
| Flammability | UL 94 V-0 |
| Standard compliance | IEC 61076-2-103 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
