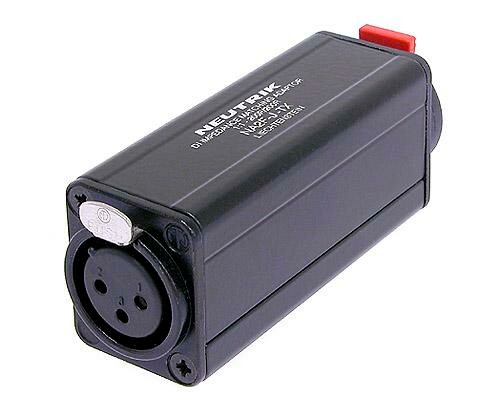

NA2F-J-TX
Miniature transformer balancing adapter, 3 pole XLR female - 1/4" jack, ground lifted
Selection of topics
Features & Benefits
Downloads
Technical Information
Features & Benefits
- The D shape adapters are problem solvers for various intermating problems for professional and semi-professional applications
- Rugged aluminium extrusion housing for best reliability
Miniatur transformer balancing adapters
Low cost solution for unbalanced/balanced line conversion and passive DI applications, where no earth or gain switching is required
Audio transformer 1:1
Impedance ratio: 200:200
Source/load impedance in Ohm: 200/2k, (600/10k)
Max. Input level (@ 50 Hz, 1% THD): -3 dBu
Technical Information
| Product | |
| Title | NA2F-J-TX |
| Connection Type | Adapter |
| Mechanical | |
| Wiresize | |
| Locking device | Latch lock |
