The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
Suitable cable:
Canare L-3CFB, Canare L-3C2VS

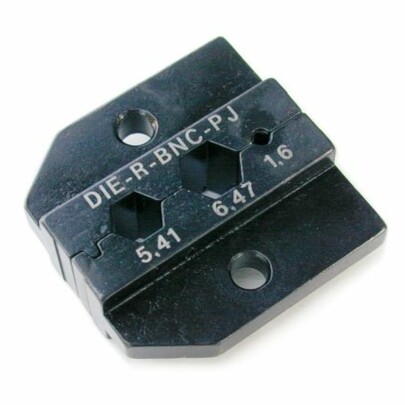

Crimp size:
Pin: 1.6 mm (square) or 1.75 mm (hex)
Shield: 5.41 mm (hex)
| Product | |
| Title | NBNC75BHK7 |
| Electrical | |
| Signal Type | HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV |
| Contact resistance | ≤ 3 mΩ (inner) |
| Contact resistance | ≤ 2 mΩ (outer) |
| Dielectric strength | 1,5 kVdc |
| Insulation resistance | > 5 GΩ |
| Rated voltage | <50 V |
| VSWR | ≤ 1.050 / > 32 dB up to 1 GHz ≤ 1.065 / > 30 dB up to 2 GHz ≤ 1.100 / > 26 dB up to 3 GHz |
| Mechanical | |
| Cable O.D. | 4.3 mm |
| Cable retention | > 30 N (center) |
| Crimp size | 5,41 |
| Crimp size (pin) | 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2) or 1,75 Hex crimp acc. IEC 60803 (die designation X) |
| Insertion force | < 25 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | |
| Cable anchoring | Jacket crimping |
| Environmental | |
| Temperature range | -30°C - +85°C °C |
| Contact crimpability | Complies with IEC 60803 and IEC 60352-2 |
