NBTC75BVX6

*** DISCONTINUED ***

The rearTWIST HD Tiny BNC cable connector is optimized for small cable diameters. The additional leading ferrule eases the critical assembly of multicore or tiny cables.

Like all Neutrik BNCs it offers a true 75 Ω design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.

Suitable cables:
CAE NC75.39, Draka 755-1001 (0.51/2.3Dz), Draka 757-1001, Sommer 600-0751, VADN 7243

Crimp size:
Pin: 1.6 mm (square)
Shield: 5.0 mm (hex)

Download Data Sheet

Selection of topics

Features & Benefits Downloads Technical Information Accessories

Download Data Sheet

Features & Benefits

“rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
Optimized assembly for mutlicore or tiny cables
True 75 Ω design meets the stringent HDTV / DVD requirements
Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
Snug-fit center pin insert provides tactile feedback
Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
Excellent cable protection and retention
Precise Swiss machined brass parts for outstanding durability

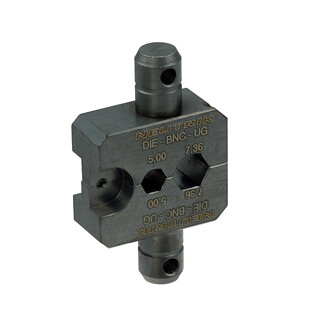

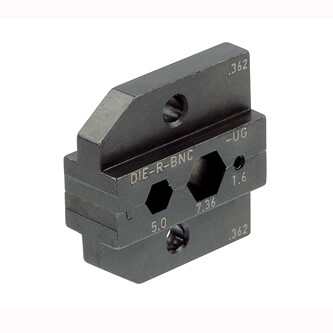

Accessories include color coded boots in 10 standard colors, crimp tool and dies

Downloads

Technical Information

Product
Title	NBTC75BVX6
Connection Type	BNC 75 Ω
Gender	male

Electrical
Contact resistance	≤ 3 mΩ (inner)
Contact resistance	≤ 2 mΩ (outer)
Dielectric strength	0,75 kVdc
Impedance	75 Ω
Insulation resistance	> 5 GΩ
Rated voltage	<50 V
VSWR	≤1.10/>26 dB up to 1 GHz ≤1.14/>24 dB up to 2 GHz ≤1.22/>20 dB up to 3 Ghz

Mechanical
Cable O.D.	4 mm
Cable retention	> 30 N (Center)
Crimp size	5 Hex crimp (shield) acc. MIL22520/5-43(B)
Crimp size (pin)	1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
Insertion force	< 25 N
Lifetime	> 1000 mating cycles
Wiresize
Locking device	Bayonett
Cable anchoring	Jacket crimping
