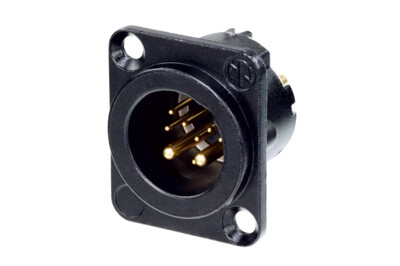

NC10MD-LX-B
10 pole male D-size receptacle, black chrome metal housing, duplex ground contact
Easy to assemble 10 pole XLR connectors with secure locking and proven Neutrik chuck type strain relief.
Selection of topics
Features & Benefits
Downloads
Technical Information
Accessories
Features & Benefits
- Suitable for data offering CAT 5e performance and power up to 16 A and 50 V - exceeds PoE+ capabilities
- Superior ruggedness compared to RJ45 type connectors
- All metal housing offers best overall RF protection and electromagnetic shielding
- D-size housing provides installation compatibility with industry standard D mounting dimensions
- Receptacle with duplex ground contact for excellent signal integrity
Technical Information
| Product | |
| Title | NC10MD-LX-B |
| Type | Chassis |
| Connection Type | XLR |
| Gender | male |
| Electrical | |
| Contact resistance | ≤ 3 mΩ |
| Dielectric strength | 1 kVdc (initial), 0.1 GΩ (after damp heat test) |
| Insulation resistance | > 10 GΩ |
| Number of electronical contacts | 8 + 2 |
| Rated current per contact | 16 A (power pins), 3 A (data pins) |
| Rated voltage | < 50 V |
| Transmission performance | CAT 5e |
| Mechanical | |
| Insertion force | ≤ 20 N |
| Withdrawal force | ≤ 20 N |
| Lifetime | > 1000 mating cycles |
| Wiresize | 2.5 mm² / AWG 14 (power pins), 1 mm² / AWG 18 (data pins) |
| Material | |
| Contact plating | 0.2 µm Au hard alloy over 2 µm Ni |
| Contacts | Brass (CuZn39Pb3) |
| Insert | PA66 |
| Locking element | Steel Ck67 |
| Shell | Zinc diecast (ZnAl4Cu1) |
| Shell plating | Black chromium |
| Environmental | |
| Flammability | UL 94 V-0 |
| Protection class | IP 40 |
| Solderability | Complies with IEC 68-2-20 |
| Temperature range | -30 °C to +80 °C |
| Manufacturing Standard | IEC 61076-2-103 |
