NE8FAV-SD

NE8FAV-SD

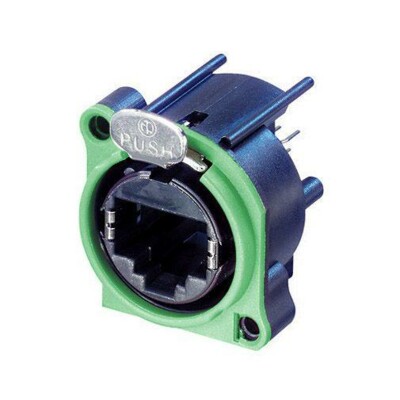

Vertical PCB mount RJ45 receptacle, A-Series cutout with latch lock, with 2 additional screw-domes for fixing the connector on the PCB (fixing screws included), max. panel thickness 3 mm.

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The all plastic A-Series offers the most space saving and cost effective design.

Attention! Does not intermate with CAT6 cable connector NE8MC6-MO and NKE6S* cables.

Download Data Sheet

Features & Benefits

  • Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
  • Approved latch lock system
  • Most space saving and cost effective design
  • CAT5e / Class D according to TIA/EIA 568C and ISO/IEC 11801
  • SD-Version with screw domes to fix connector onto PCB securely
  • PoE type 4 class 8 (100W) acc. IEEE 802.3bt

Downloads

Technical Information

Product
Title NE8FAV-SD
Gender female
Electrical
Contact resistance < 50 mΩ
Dielectric strength 1 kVdc
Frequencyrange 1 - 100 MHz
Insulation resistance > 0.5 GΩ
Rated current per contact 1,5 A
Rated voltage ≤ 57 V
Transmission performance CAT5e acc. to TIA/EIA 568C channel specifications
CLASS D acc. to ISO/IEC 11801 channel specifications
Power over Ethernet PoE type 4 class 8 (100W) acc. IEEE 802.3bt
Mechanical
Insertion force ≤ 20 N
Withdrawal force ≤ 20 N
Lifetime > 1000 mating cycles
Panel thickness max. 3 mm 0.12'
Wiresize
Wiring Vertical PCB mount with additional screw domes
Locking device Latch lock
Mounting direction Rear mounting
Chassis shape A
Mounting A-Screw
Material
Contact plating 0.2 µm Au over Ni plating
Contacts Bronze (CuSn8)
Insert PBTP 15 % GR
Shell PBTP 15 % GR
Environmental
Flammability UL 94 V-0
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
Standard compliance ISO/IEC 11801-1 Ed. 1.0 (2017-11)
IEC 60603-7-3 Ed.2.0 (2010-04)
IEC 60512-99-002 Ed.2.0 (2022-01)
IEC 60512-9-3 (2011-06)

Accessories

A-SCREW
A-SCREW-1-8
ACRF
ACRF-*
