NE8MC-1

*** DISCONTINUED ***
Direct replacement / successor: NE8MX-1

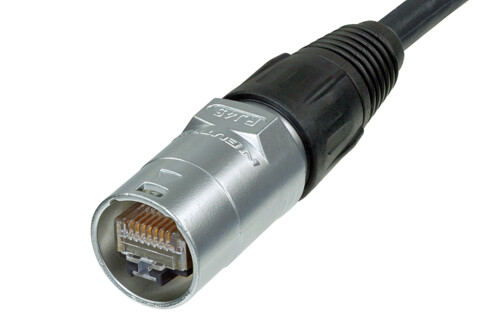

Cable connector carrier consists of a shell, fixing disk, chuck and boot. The boot (same as XLR X-Series) is suitable for cable diameters from 3.5 - 8 mm. For non pre-assembled cables only. Cable connector carrier does not include a RJ45 plug.

The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.

Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Download Data Sheet

Selection of topics

Features & Benefits Downloads Technical Information Accessories

Download Data Sheet

Features & Benefits

The RJ45 system for harsh and demanding environment
Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
Rugged diecast shell and unique chuck type strain relief
Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors
O-ring gasket to achieve IP54 water protection in combination with SE8FD sealing kit
Accessories include color coded boots in 9 standard colors

Downloads

Technical Information

Product
Title	NE8MC-1
Gender	male

Mechanical
Cable O.D.	max. 8 mm 0.315'
Insertion force	≤ 20 N
Withdrawal force	≤ 20 N
Lifetime	> 1000 mating cycles
Wiresize

Material
Boot	Polyamide (PA 6)
Shell	Zinc diecast (ZnAl4Cu1)
Strain relief	Polyacetal (POM)
Shell plating	Chromium

Environmental
Temperature range	-30 °C to +80 °C

Accessories

BSX-*

NE8FFX6-W
