Technical Information
| Product | |

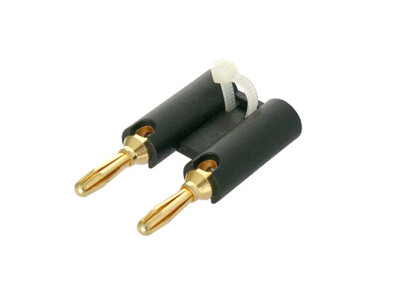

| Title | NYS511-B |
| Electrical | |
| Contact resistance | < 10 mΩ |
| Contact resistance | < 20 mΩ |
| Dielectric strength | 0,5 kVdc |
| Rated current per contact | 20 A |
| Mechanical | |
| Cable O.D. | ≤ 10.5 mm |
| Lifetime | 5000 mating cycles |
| Wiresize |
| Material | |
| Contact plating | 0.2 µm Au |
| Contacts | Bronze (CuSn6) |
| Insert | Polyamide (PA 6 30 % GR) |
| Shell | Polyamide (PA 6 30 % GR) |
| Environmental | |
| Temperature range | -20 °C to +70 °C |
