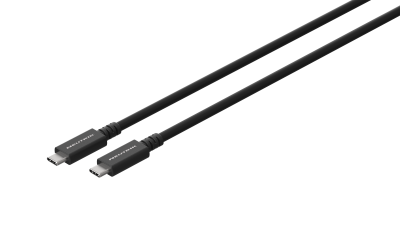

USB Type C 480M Charging Cables

The USB-IF certified NEUTRIK USB Type C 480M Charging Cables are part of the essential DATA CABLES product group. These cables are for low data connectivity and high power delivery in indoor environments allowing to transmit a minimum of 480 Mbps and supply up to 240 W for fast charging to devices over a medium distances.

Besides the essential DATA CABLES, NEUTRIK also has premium and ultimate DATA CABLES for rugged and outdoor enviroments with protected and locking connectors at the cable ends.

Download Data Sheet

Features & Benefits

  • 240 W (48 V / 5 A) Power Delivery according to USB PD 3.1
  • 480 Mbps according to USB 2.0
  • USB-IF certified

Article Variants

Aticle nameDetailsOrder code
NKUCP480-U0U0-M0005       USB Type C 480M Charging Cable (m) (m) 0.5 m with retail packaging1038980
NKUCP480-U0U0-M0005USB Type C 480M Charging Cable (m) (m) 0.5 m with bulk/eco packaging1038981
NKUCP480-U0U0-M0010USB Type C 480M Charging Cable (m) (m) 1.0 m with retail packaging1038982
NKUCP480-U0U0-M0010   USB Type C 480M Charging Cable (m) (m) 1.0 m with bulk/eco packaging1038983
NKUCP480-U0U0-M0015USB Type C 480M Charging Cable (m) (m) 1.5 m with retail packaging1038984
NKUCP480-U0U0-M0015USB Type C 480M Charging Cable (m) (m) 1.5 m with bulk/eco packaging1038985
NKUCP480-U0U0-M0020USB Type C 480M Charging Cable (m) (m) 2.0 m with retail packaging1038986
NKUCP480-U0U0-M0020USB Type C 480M Charging Cable (m) (m) 2.0 m with bulk/eco packaging1038987
NKUCP480-U0U0-M0030USB Type C 480M Charging Cable (m) (m) 3.0 m with retail packaging1038988
NKUCP480-U0U0-M0030USB Type C 480M Charging Cable (m) (m) 3.0 m with bulk/eco packaging1038989

Technical Information

Product
Title NKUCP480-U0U0-*
Product group essential DATA CABLES
Connection type USB Type C
Description PLEASE NOTE: Preference will vary depending on your additional hardware and software components & configurations.
Electrical
Rated current per contact 5 A
Rated voltage 48 V
Power delivery 240 W acc. to USB PD 3.1
Transmission performance 480 Mbps acc. to USB 2.0
Insulation resistance > 2MΩ
Conductor resistance < 3 Ω
Mechanical
Lifetime 10'000 mating cycles
Locking device Without locking device
Material
Contact plating Pin: AU
Plug: NI
Contacts Alloy
Cable Jacket Type PVC
Shell PVC
Environmental
Flammability V-0 acc. to UL94
Temperature range -25°C to +80 °C
Standard compliance USB-IF Certified
Regulation (EU) 2011/65
Regulation (EU) 2023/988
Regulation (UK) 2016 No. 1101
Ingress protection class IP20
