*DISCONTINUED* Please see successor NL4MPXX-3

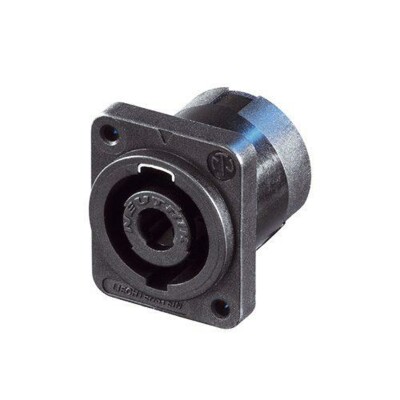

4 pole chassis connector, black D-size flange, self tapping screw holes (A-screw), 3/16" flat tabs
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
Product | |
Title | NL4MP-3 |
Connection Type | speakON |
Gender | male |
Electrical | |
Contact resistance | ≤ 3 mΩ (after lifetime) |
Dielectric strength | 4 kVdc (peak) |
Insulation resistance | > 1 GΩ (after dampheat) |
Rated current per contact | 30 A rms continuous |
Rated current per contact | 40 A audiosignal, duty cycle 50 % |
Rated voltage | 250 V ac |
Attention | speakON is NOT to be used as an AC mains or power supply connector! |
Mechanical | |
Lifetime | > 5000 mating cycles |
Wiresize | |
Locking device | Quick Lock |
Mounting direction | Rear mounting |
Chassis shape | D |
Layout | standard hole position, self tapping screw holes (A-Screw) |
Material | |
Contact plating | 4 µm Ag |
Contacts | Bronze (CuSn6) |
Shell | Polyamide (PA 6 30 % GR) black |
Environmental | |
Flammability | UL 94 HB |
Solderability | Complies with IEC 68-2-20 |
Temperature range | -30 °C to +80 °C |
