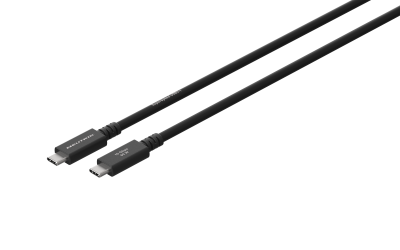

The NEUTRIK USB Type C 10G AEC Cables are part of the essential DATA CABLES product group. These cables are for data connectivity and power delivery in indoor environments allowing to transmit 10 Gbps and supply 60 W between devices over long distances with the AEC technology.
Besides the essential DATA CABLES, NEUTRIK also has premium and ultimate DATA CABLES for rugged and outdoor enviroments with protected and locking connectors at the cable ends.
| Aticle name | Details | Order code |
| NKUCA10-U0U0-M0015 | USB Type C 10G AEC Cable (m) (m) 1.5 m with retail packaging | 1038968 |
| NKUCA10-U0U0-M0015 | USB Type C 10G AEC Cable (m) (m) 1.5 m with bulk/eco packaging | 1038969 |
| NKUCA10-U0U0-M0020 | USB Type C 10G AEC Cable (m) (m) 2.0 m with retail packaging | 1038970 |
| NKUCA10-U0U0-M0020 | USB Type C 10G AEC Cable (m) (m) 2.0 m with bulk/eco packaging | 1038971 |
| NKUCA10-U0U0-M0030 | USB Type C 10G AEC Cable (m) (m) 3.0 m with retail packaging | 1038972 |
| NKUCA10-U0U0-M0030 | USB Type C 10G AEC Cable (m) (m) 3.0 m with bulk/eco packaging | 1038973 |
| NKUCA10-U0U0-M0040 | USB Type C 10G AEC Cable (m) (m) 4.0 m with retail packaging | 1038974 |
| NKUCA10-U0U0-M0040 | USB Type C 10G AEC Cable (m) (m) 4.0 m with bulk/eco packaging | 1038975 |
| NKUCA10-U0U0-M0050 | USB Type C 10G AEC Cable (m) (m) 5.0 m with retail packaging | 1038976 |
| NKUCA10-U0U0-M0050 | USB Type C 10G AEC Cable (m) (m) 5.0 m with bulk/eco packaging | 1038977 |
| Product | |
| Title | NKUCA10-U0U0-* |
| Product group | essential DATA CABLES |
| Connection type | USB Type C AEC |
| Description | PLEASE NOTE: Preference will vary depending on your additional hardware and software components & configurations. |
| Electrical | |
| Rated current per contact | 3 A |
| Rated voltage | 20 V |
| Power delivery | 60 W acc. to USB PD 3.0 |
| Transmission performance | 10 Gbps acc. to USB 3.1 Gen 2x1 |
| Insulation resistance | > 2 MΩ |
| Conductor resistance | < 3 Ω |
| Mechanical | |
| Lifetime | 10'000 mating cycles |
| Locking device | Without locking device |
| Material | |
| Contact plating | Pin: AU Plug: NI |
| Contacts | Copper Alloy |
| Cable Jacket Type | TPE |
| Shell | PVC |
| Environmental | |
| Flammability | V-0 acc. to UL94 |
| Temperature range | -25°C to +60 °C |
| Standard compliance | Regulation (EU) 2011/65 Regulation (EU) 2023/988 Regulation (UK) 2016 No. 1101 |
| Ingress protection class | IP20 |
