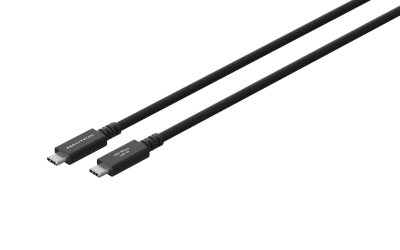

USB Type C 480M Charging Cables
The USB-IF certified NEUTRIK USB Type C 480M Charging Cables are part of the essential DATA CABLES product group. These cables are for low data connectivity and high power delivery in indoor environments allowing to transmit a minimum of 480 Mbps and supply up to 240 W for fast charging to devices over a medium distances.
Besides the essential DATA CABLES, NEUTRIK also has premium and ultimate DATA CABLES for rugged and outdoor enviroments with protected and locking connectors at the cable ends.
Features & Benefits
- 240 W (48 V / 5 A) Power Delivery according to USB PD 3.1
- 480 Mbps according to USB 2.0
- USB-IF certified
Technical Information
| Product | |
|---|---|
| Title | NKUCP480-U0U0-* |
| Product group | essential DATA CABLES |
| Connection type | USB Type C |
| Description | PLEASE NOTE: Preference will vary depending on your additional hardware and software components & configurations. |
| Electrical | |
|---|---|
| Rated current per contact | 5 A |
| Rated voltage | 48 V |
| Power delivery | 240 W acc. to USB PD 3.1 |
| Transmission performance | 480 Mbps acc. to USB 2.0 |
| Insulation resistance | > 2MΩ |
| Conductor resistance | < 3 Ω |
| Mechanical | |
|---|---|
| Lifetime | 10'000 mating cycles |
| Locking device | Without locking device |
| Material | |
|---|---|
| Contact plating | Pin: AU Plug: NI |
| Contacts | Alloy |
| Cable Jacket Type | PVC |
| Shell | PVC |
| Environmental | |
|---|---|
| Flammability | V-0 acc. to UL94 |
| Temperature range | -25°C to +80 °C |
| Standard compliance | USB-IF Certified Regulation (EU) 2011/65 Regulation (EU) 2023/988 Regulation (UK) 2016 No. 1101 |
| Ingress protection class | IP20 |
Article Variants
| Aticle name | Details | Order code |
| NKUCP480-U0U0-M0005 | USB Type C 480M Charging Cable (m) (m) 0.5 m with retail packaging | 1038980 |
| NKUCP480-U0U0-M0005 | USB Type C 480M Charging Cable (m) (m) 0.5 m with bulk/eco packaging | 1038981 |
| NKUCP480-U0U0-M0010 | USB Type C 480M Charging Cable (m) (m) 1.0 m with retail packaging | 1038982 |
| NKUCP480-U0U0-M0010 | USB Type C 480M Charging Cable (m) (m) 1.0 m with bulk/eco packaging | 1038983 |
| NKUCP480-U0U0-M0015 | USB Type C 480M Charging Cable (m) (m) 1.5 m with retail packaging | 1038984 |
| NKUCP480-U0U0-M0015 | USB Type C 480M Charging Cable (m) (m) 1.5 m with bulk/eco packaging | 1038985 |
| NKUCP480-U0U0-M0020 | USB Type C 480M Charging Cable (m) (m) 2.0 m with retail packaging | 1038986 |
| NKUCP480-U0U0-M0020 | USB Type C 480M Charging Cable (m) (m) 2.0 m with bulk/eco packaging | 1038987 |
| NKUCP480-U0U0-M0030 | USB Type C 480M Charging Cable (m) (m) 3.0 m with retail packaging | 1038988 |
| NKUCP480-U0U0-M0030 | USB Type C 480M Charging Cable (m) (m) 3.0 m with bulk/eco packaging | 1038989 |
